Hey I'm pretty new to Godot and was trying to implement an equivalent to a unity stencil shader for my project. I got most everything setup and it works in editor. However, whenever I play the game and try to reference the subviewport texture in a 3D object's shader the texture just show up as pink. If I restart the game engine then the texture shows up as pink in editor too (until I reset the ViewportTexture's local to scene checkbox). I'm wondering if there is anything I've missed and need to implement to get it to work. I've attached a copy of my debug project for convenience.

Zip File:

subviewport-test-2.zip
3MB

Screenshots:

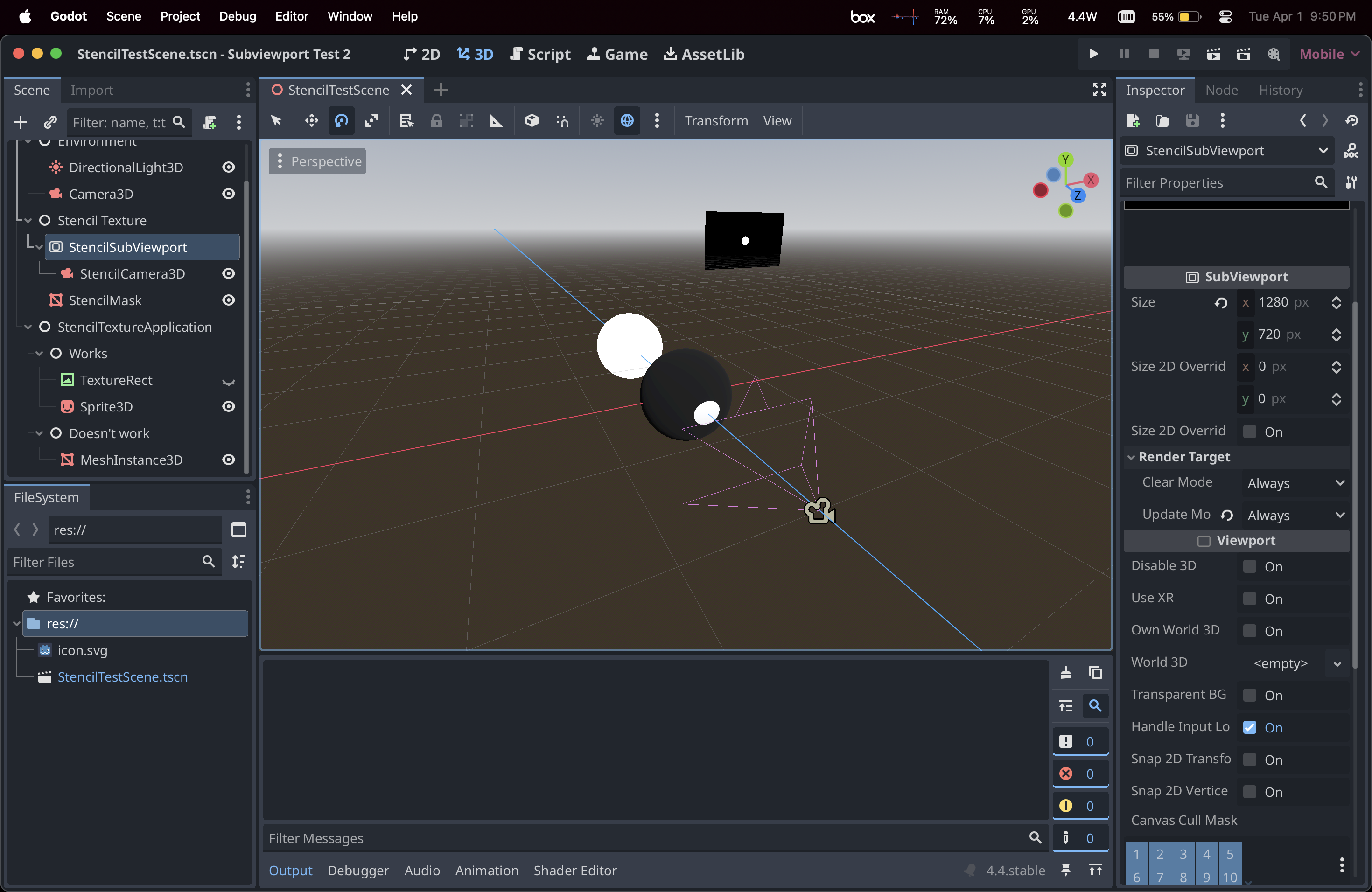

In editor (everything's fine):

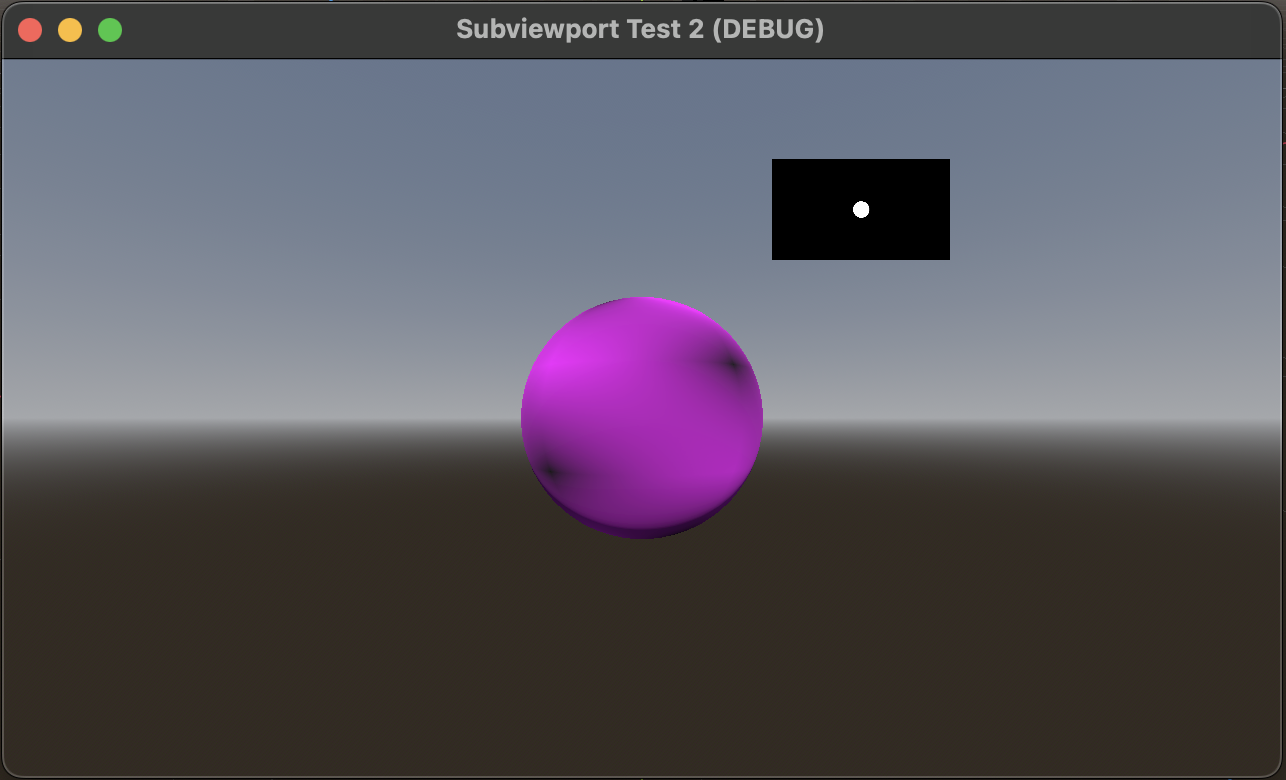

in game (suddenly broken: applies to 3D mesh objects, textureRect and sprite3D don't do this):

  • Tomcat replied to this.

  • knott11 in game (suddenly broken: applies to 3D mesh objects, textureRect and sprite3D don't do this):

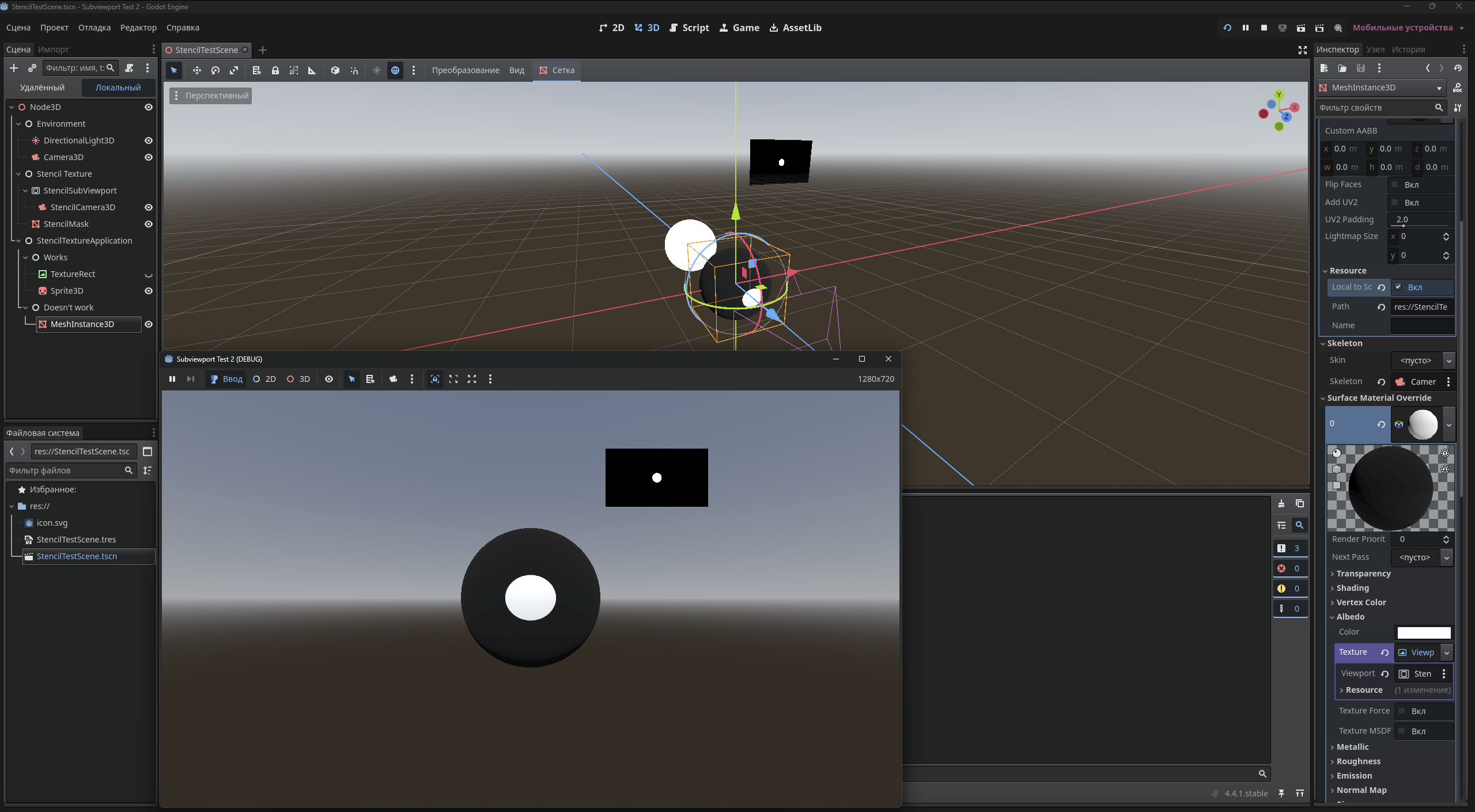

    Try assigning a texture to the Surface Material Override:

      knott11 in game (suddenly broken: applies to 3D mesh objects, textureRect and sprite3D don't do this):

      Try assigning a texture to the Surface Material Override:

        That totally worked!!! Thank you so much!
        I tested it in my original project and it works there too!

        I greatly appreciate you taking the time to help me fix this bug. Your work definitely saved me a lot of time and headache.
        Thank you!
