How to import export from blender

kuligs2

So, we all know that you can import/export easily from blender to godot. But it seems that the information on how to set things up correctly is fragmented across multiple posts/forums/docs..

Problem arises is that i could not find more detailed information on how/what to do.

As an example im working on.

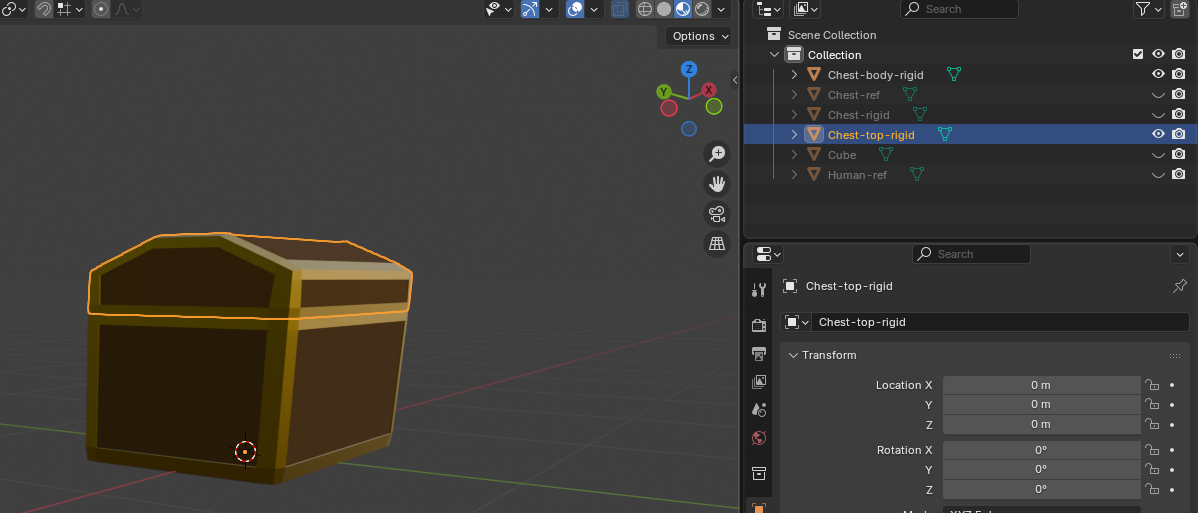

I want a chest that consists of two pieces (meshes) Lid and the box part.

Now i want to make the collision shape and i want it to rigidbody3d.

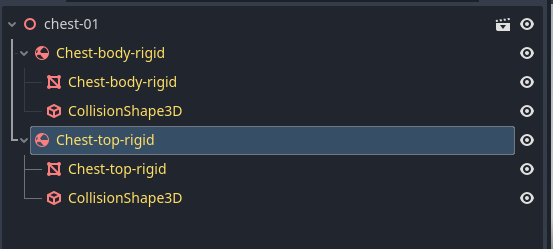

So if i add "-rigid" to the name of the mesh so that it generates rigidbody3d node, it will create two rigid bodies

This is not what i want.

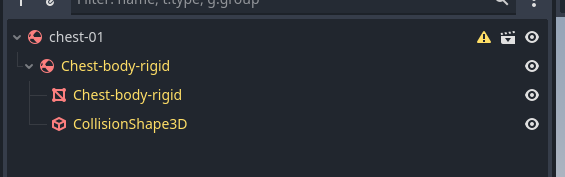

Also the base node of the scene is Node3D but i want the scene to be RigidBody3D.

I know i can change import settings, but it will still create a child node of the parent.

Here is a reference list i found, but maybe there is more information how to export gltf so that it imports as rigidbody3d with correct node order.

https://docs.godotengine.org/en/stable/tutorials/assets_pipeline/importing_3d_scenes/node_type_customization.html#rigid-body-rigid

kuligs2

I tried to write import script that reparents the collision shape and deletes staticbody but it dont work, and the collision shape data gets lost.

@tool # Needed so it runs in editor.
extends EditorScenePostImport

# This sample changes all node names.
# Called right after the scene is imported and gets the root node.
func _post_import(scene):
	# Change all node names to "modified_[oldnodename]"
	iterate(scene)
	return scene # Remember to return the imported scene

# Recursive function that is called on every node
# (for demonstration purposes; EditorScenePostImport only requires a `_post_import(scene)` function).
func iterate(scene):
	if scene != null:

		for node in scene.get_children():

			if node is StaticBody3D:
				var child: CollisionShape3D = node.get_child(0)

				child.reparent(scene)
				node.queue_free()
