How to use RootMotionView for jumping?

kuligs2

Hello, im new here.
As im learning how to use root motion to move character (set velocity) based on the root bone movement in the character animation, i came across a problem with jumping. For one, i would like to control jumping like always, without root motion, but now, that my velocity is dependent on root motion, the jumping is broken because, ofc, in the jump animation the root bone is not moving.

One way would be as i understand, is to, as my animations are state based, when im in any of jump* states, i need to disable setting velocity with root motion.

But i was wondering if there is "smarter/better/industry standard" way of doing it?

redrc

Hey kuligs2,
Boy this brings back memories.
The best way I used (in Lightwave3D), is to create a null as the root parent of the character. This way you never have to interrupt the root bone motion in any way. The root bone motion/animation is encapsulated as a child under this stationary null parent.
Then: You simply control the null for direction xyz as needed, and set your jump animation player. (I haven't tried Godot, but I think that is the best way. You can create a CharacterBody as the "null" equivalent, without affecting the root bone, until called.) It worked very well and smooth in Lightwave!

Think about how 2D works- it's the same principle:
You input to move the "body" null left, right, jump, etc, but the Anims move the skeleton(sprites).

Other times, I used BVH (mocap) with IK - oh so natural movement (not the same BVH -volume in Godot.)
Hope it helps.

kuligs2

redrc honestly i didnt get the concept you talking about.

For now im dealing with it, when jump state is activated, i disable root motion by setting the root_motion_track to nothing then once jump-landed state comes in i reinstate the root_motion_track..

But i came across situations where if you walk downward the slope fast enough youre starting to fly (midair) and then touch floor (is_onfloor) then there is situation where root motion kicks in before character is on floor fully and you walk straight line off the slope into air..
Maybe i need to add raycast to check if on floor is for sure on floor..

redrc

How are feet detecting ground now?
Have you tried 2D in Godot? It is highly recommended first project.
Raycast is necessary in 3.x, but in 4.x character body has "Grounded" in inspector option.

Honestly, I think forward K. is the hard way to go.
I haven't yet tried Godot 3D , but (from Lightwave) I believe firmly if you can go IK, you can set up collision for the feet against the sloping ground, and apply usual physics. There are several IK videos for Godot online.
Can you explain a bit about your rig setup?

kuligs2

redrc How are feet detecting ground now?

Character3D has is_on_floor() function.

redrc Have you tried 2D in Godot? It is highly recommended first project.

Im not interested in 2D

redrc Raycast is necessary in 3.x, but in 4.x character body has "Grounded" in inspector option.

This would solve something, maybe.. not sure.

redrc Honestly, I think forward K. is the hard way to go.

Not sure what you mean "hard way". Forward kinematics is how you animate character/mesh. In my case i use boths kinematics - FK and IK to animate the animation in blender and then export the animation to godot to use in animation_player to play.
Problem is that when i need to jump. In jump animation root bone stays ar 0,0,0 vector.

redrc I haven't yet tried Godot 3D , but (from Lightwave) I believe firmly if you can go IK, you can set up collision for the feet against the sloping ground, and apply usual physics. There are several IK videos for Godot online.

I dont need this. this is not the problems im having.

redrc Can you explain a bit about your rig setup?

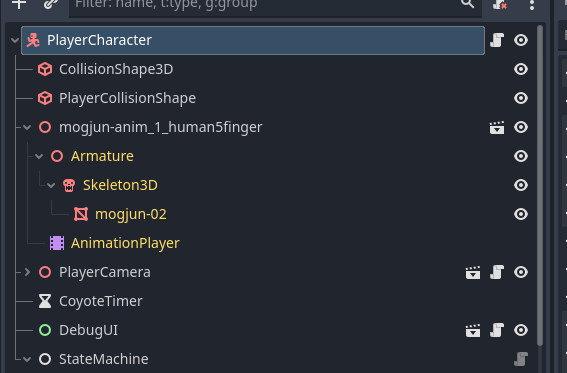

I dont even know what you need to know. Its just a rig. Basically this setup:

But here only blender part is shown. As you export to godot, In my case, i export only deformation bones + root bone.
This plugin helps to rename and reparent existing rigify rig so that your bones stem from one root bone (which is a must in root motion).

Here is my problem. When im changing states from run/wak which are root motion, to jump-midair (falling) which is not root motion, there is a milisecond of root motion animation slipping away from the character because the root motion track is reset. And sometimes it glitches out and my character mesh moves further in scene on its own without the character body moving.

In my character script at the end of the

extends CharacterBody3D
class_name Player

@onready var player_camera: PlayerCamera = $PlayerCamera
@onready var coyote_timer: Timer = $CoyoteTimer
@export var anim_player:AnimationPlayer
@onready var debug_ui: DebugUI = $DebugUI

# For root motion
@onready var character_node: Node3D = $"mogjun-anim_1_human5finger"

@onready var state_machine: StateMachine = $StateMachine

@onready var input_gatherer : InputGatherer = InputGatherer.new()

var jump_velocity = 9
var coyote_time = 0.15
var jump_count: int = 0
var max_jump_count = 2
var is_sprinting = false
var is_root_motion = true
#--------- NEW ----------
var input_dir :Vector2
var direction :Vector3
var speed = 1.0

var acceleration = 3.0
var fps: float
var is_crouching = false
var is_ascending = false
var is_falling = false
var is_midair = false
var is_onwall = false
var is_attacking = false
var jump_request = false

var save_path = "user://savegame.save"
var player_tranny:Transform3D

var global_basis_wanted:Basis #= global_basis
var current_rotation
var default_root_motion_track = NodePath("Armature/Skeleton3D:root")


func _physics_process(delta: float) -> void:
	var input_package:InputPackage = input_gatherer.gather_input()

	if not is_on_floor():
		is_midair = true
	else:
		is_midair = false

	is_falling = velocity.y < 0 and !is_on_floor()
	is_ascending = velocity.y > 0 and !is_on_floor()
	is_onwall = is_on_wall()

	input_dir = Input.get_vector("k_left", "k_right", "k_forward", "k_backward")
	direction = (player_camera.transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()

	if direction:
		var up := Vector3.UP
		# For root motion
		var forward := direction

		var right := up.cross(forward).normalized()
		var corrected_up := forward.cross(right).normalized()
		var target_basis := Basis(right, corrected_up, forward).orthonormalized()
		var a = transform.basis.get_rotation_quaternion()
		var b = target_basis.get_rotation_quaternion()
		var c = a.slerp(b,0.1)
		transform.basis = Basis(c).orthonormalized()
	else:
		# For root motion
		if is_root_motion:
			var _velocity = get_quaternion() * anim_player.get_root_motion_position() / delta
			set_velocity(_velocity)
		else:
			velocity.x = move_toward(velocity.x, 0.0, delta)
			velocity.z = move_toward(velocity.z, 0.0, delta)

	apply_weight(delta)
	process_input(input_package)

func process_input(input_package:InputPackage):
	var switch_state: State.Type = state_machine.current_state.switch_state(input_package)
	if not state_machine.current_state.is_blocking:
		if self.is_midair:
			if state_machine.current_state.state_type != State.Type.JUMP_MIDAIR:
				var new_input_pkg = input_gatherer.build_input_package(State.Type.JUMP_MIDAIR)
				state_machine.change_state(new_input_pkg,state_machine.current_state)
				return

		if switch_state != State.Type._NONE:
			var new_input_pkg = input_gatherer.build_input_package(switch_state)
			state_machine.change_state(new_input_pkg,state_machine.current_state)
		else:
			if input_package.requested_state_type != state_machine.current_state.state_type:
				state_machine.change_state(input_package,state_machine.current_state)
	return

Not the cleanest code...
So basically when i switch states from Run to Jump because the character is_midair = True i set root motion to false.

func set_root_motion(_is_root_motion:bool):

	if _is_root_motion:
		anim_player.root_motion_track = default_root_motion_track
	else:
		anim_player.root_motion_track = NodePath("")

	is_root_motion=_is_root_motion

This is my jump midair state:

extends State
var char_speed :float = 3.0
func _ready() -> void:
	anim_name = "Jump_midair_90"
	anim_blend = 0.1
	state_type = Type.JUMP_MIDAIR

func enter(_previous_state:State=null) -> void:
	previous_state = _previous_state
	is_blocking = true
	player.anim_player.play(anim_name,anim_blend)
	player.set_root_motion(false)
	print_debug("Jump_midair")


func physics_update(_delta:float) ->void:
	if player.is_on_floor():
		is_blocking = false
	#player.move(player.speed,player.acceleration,_delta)
	#player.move_root(_delta)
	player.move_and_slide()

func anim_finished(_animation_name):
	player.anim_player.animation_finished.disconnect(anim_finished)
	is_blocking = false

func switch_state(_input_package:InputPackage) -> State.Type:
	if not is_blocking:
		return Type.JUMP_LANDED
	return State.Type._NONE

On change state by statemachine, the new state runs enter() function.

Maybe i need to redo statemachine....?

kuligs2

Been hitting my head (the top one) and still come up short.

What im missing is a better way to disable root motion before switching to animation that has no root motion. Because at the moment it seems to loose the mesh position if i do it by state, but animations blend in and out when states switch and so i get this 0.5s of mesh slipping away from skelly root and back..

Are root motion jumps hard-animated? Or what am i doing wrong?

I mean i want to have the feel of a platformer so that i can jump and maybe double jump, but then when on floor to use root motion to capture the perfect feet sync with ground movement.

In unity there was a toggle for each animation you can set to use root motion or not, in godot its either root motion or not.. 😃

Not sure.. will try to figure this out..

kuligs2

I think i solved my problem.
I dont know why i thought setting/unsetting root_motion_track was a good idea, but i did it.

So the culprit was the setting/unsetting that track NodePath() during runtime, which leads to unsolicited mesh animation de-sync.

In my case every time i change state from rooted motion animation to un-rooted animation such as running (root motion) to jump (not root motion) i call a function: player.set_root_motion(false)

var default_root_motion_track = NodePath("Armature/Skeleton3D:root")

func set_root_motion(_is_root_motion:bool):

	if _is_root_motion:
		anim_player.root_motion_track = default_root_motion_track
	else:
		anim_player.root_motion_track = NodePath("")

	is_root_motion=_is_root_motion
	print("Set root, ",_is_root_motion)

And in player process function that governs the movement:

func _physics_process(delta: float) -> void:
	input_dir = Input.get_vector("k_left", "k_right", "k_forward", "k_backward")
	direction = (player_camera.transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()

	if direction:
		var up := Vector3.UP
		# For root motion
		var forward := direction

		var right := up.cross(forward).normalized()
		var corrected_up := forward.cross(right).normalized()
		var target_basis := Basis(right, corrected_up, forward).orthonormalized()
		var a = transform.basis.get_rotation_quaternion()
		var b = target_basis.get_rotation_quaternion()
		var c = a.slerp(b,0.1)
		transform.basis = Basis(c).orthonormalized()
	else:
		# For root motion
		if is_root_motion and !is_midair:
			velocity = get_quaternion() * anim_player.get_root_motion_position() / delta

		else:
			velocity.x = move_toward(velocity.x, 0.0, delta)
			velocity.z = move_toward(velocity.z, 0.0, delta)

Here is the bad result:

Now removing this part fixes the thing i was having.

var default_root_motion_track = NodePath("Armature/Skeleton3D:root")

func set_root_motion(_is_root_motion:bool):

	#if _is_root_motion:
	#	anim_player.root_motion_track = default_root_motion_track
	#else:
	#	anim_player.root_motion_track = NodePath("")

	is_root_motion=_is_root_motion
	print("Set root, ",_is_root_motion)

Hope this helps someone.

Here is also godot docs on how you set velocity and rotation for the root motion:

https://docs.godotengine.org/en/stable/classes/class_animationmixer.html#class-animationmixer-method-get-root-motion-position

One of these worked for me on this rig, and other one worked for me on other rig.. idk why.
