Help understanding decoupling and signaling to managers

Protophase

I need some help understanding how to go about this and if I am understanding this properly.
I have heard that you should call down, signal up.
I have a couple of autoloaders that (in my mind) have responsibility for each specific area like the GameManager and LevelManager.

The idea is that the GameManager is responsible for orchestrating the other managers and also respond to different events in the game, like pause, restart, quit, respond to player died etc. Levelmanager is responsible for instantiating the level and the player. The Gamemanager calls the LevelManager's methods "instantiate_level" and "spawn_player" -> LevelManager removes current level/loads new level and spawns the player.

Let's say this instantiated level contains a level trigger. The LevelTrigger reacts to when the player enters it's Area3D and sends a level resource through signaling. How can I make sure that the Gamemanager can connect to this trigger without it existing in the tree yet? My understanding is that I will use emit_signal("request_level_transition", level) and pass the appropriate leveldata to the GameManager which then calls the method on the LevelManager but I need to somehow tell the Gamemanager that the trigger exists to be able to connect to it.

How can I make sure that the GameManager connects to the signal that the instantiated level trigger emits?
Do I have a script on the levels root node itself that pass on the nodes for the LevelTriggers in the instantiated level on to the manager?
Should I not send signals at all and just call directly to the LevelManager from the LevelTrigger even though you shouldn't do that?

Also should the GameManager NOT call directly to the levelmanager but instead send a signal to every manager?

kuligs2

Protophase you need to ask question less and start trying stuff.. i was in the same boat as you, but when i started experimenting, it all made sense.

Your game manager needs to be accesible by all instantiated nodes you want to from where you gonna emit the signal.

So in the instatiated nodes ready() function you can connect your instatiated node "triger" to some function on the game manager.

So in your example, as i understand

my_level.gd

It has a signal -> trigger_signal

And a function player_entered_area() that emits trigger_signal -> trigger_signal.emit(some_data)

So in GameManager.gd where you instantiate the my_level, you connectmy_level.trigger_signal.connect(game_manager_function), and the game_manager_funtion(some_sort_of_data) has a parameter that accepts some_data.

This way when something triggers that my_level signal, it will emit with some_data to GameManager and you can use that data.

xyz

Protophase Don't use any "managers".

DaveTheCoder

kuligs2 you need to ask question less and start trying stuff.. i was in the same boat as you, but when i started experimenting, it all made sense.

As Yoda said, "Do. Or do not. There is no try."

kuligs2

TO expand more, here is a sample code from my project

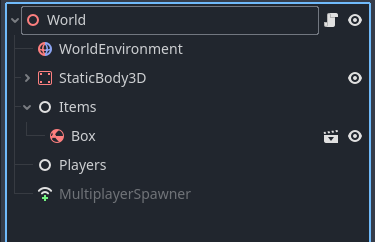

Here i have a multiplayer project where players can spawn boxes in the world.

The world scene controls the spawnage. Player nodes trigger the spawn_box request. So i have connected player spawn_box request signals to the world scene script so that the world would spawn boxes for every player multiplayer instance.

world.gd

extends Node3D
const PLAYER = preload("res://Assets/Player/player.tscn")
const BOX = preload("res://Assets/Items/box.tscn")
@onready var players: Node = $Players
const start_pos: Vector3 = Vector3(0,3,0)
@onready var items = $Items

# Called when the node enters the scene tree for the first time.
func _ready() -> void:
	var index =0
	for i in GameManager.players:
		spawn_player(GameManager.players[i])

		index +=1
	#Input.mouse_mode = Input.MOUSE_MODE_CAPTURED
	pass # Replace with function body.


# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta: float) -> void:
	pass

func spawn_item_world(player_transform:Transform3D, basis_z:Vector3):

	var new_box = BOX.instantiate()
	new_box.position = player_transform.origin - (basis_z *  3)
	add_child(new_box)

	pass

func spawn_item_world_spawner(player_transform:Transform3D, basis_z:Vector3):

	var new_box = BOX.instantiate()
	new_box.position = player_transform.origin - (basis_z *  3)
	items.add_child(new_box)

	pass

func spawn_player(player_data:PlayerData):
	var new_pos:Vector3


	var new_player = PLAYER.instantiate()
	new_player.name = str(player_data.id)
	new_player.player_data=player_data
	players.add_child(new_player)
	#new_player.spawn_item_signal.connect(spawn_item_world)
	new_player.spawn_item_signal.connect(spawn_item_world_spawner)

	var player_count = players.get_children().size()


	if player_count > 1:
		var last_player = players.get_children()[player_count-1]
		new_pos = last_player.position + Vector3(3,3,3)
		new_player.position = new_pos
	else:
		new_player.position = start_pos

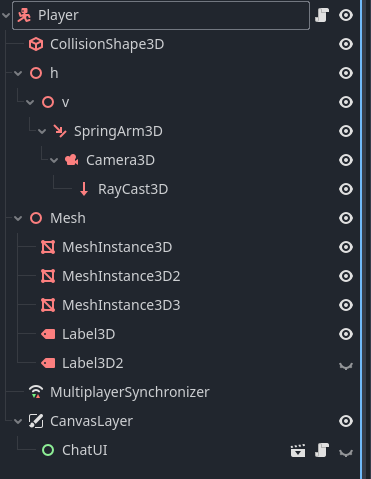

player.gd

extends CharacterBody3D
class_name Player

var player_data:PlayerData

@export_category("SpringArm and Interact Ray properties")
@export var SPRING_ARM_LENGTH = 5.25
@export var SPRING_ARM_MARGIN = 0.1
@export var INTERACT_RAY_LENGTH = 2.5
@export_category("H node offset")

@export var OFFSET_X = 0
@export var OFFSET_Y = 2
@export var OFFSET_Z = 0

@export_category("Camera offset")
@export var OFFSET_H = 0.5
@export var OFFSET_V = 0

@export_category("Camera vertical angles")
@export var cam_v_min = -90.0 # degrees
@export var cam_v_max = 90.0 # degrees

@onready var mesh:Node3D = $Mesh
@onready var camera_3d: Camera3D = $h/v/SpringArm3D/Camera3D


const SPEED = 5.0
const JUMP_VELOCITY = 4.5
var PUSH_FORCE = 1.0
var THROW_FORCE = 20

var h_sensitivity = 0.20
var v_sensitivity = 0.20

var camrot_h = 0.0
var camrot_v = 0.0

var current_collider = null
var is_mouse_over = false

# Get the gravity from the project settings to be synced with RigidBody nodes.
var gravity = ProjectSettings.get_setting("physics/3d/default_gravity")

@onready var spring_arm_3d = $h/v/SpringArm3D
@onready var interact_ray = $h/v/SpringArm3D/Camera3D/RayCast3D

@onready var multiplayer_synchronizer: MultiplayerSynchronizer = $MultiplayerSynchronizer
@onready var label_3d: Label3D = $Mesh/Label3D
@onready var label_3d_2: Label3D = $Mesh/Label3D2

@onready var chat_ui: ChatUI = $CanvasLayer/ChatUI


var is_mouse_captured:bool = true
signal spawn_item_signal


func _enter_tree() -> void:
	set_multiplayer_authority(str(name).to_int())

	pass
func _ready():

	if not is_multiplayer_authority(): return

	camera_3d.h_offset=OFFSET_H
	camera_3d.v_offset=OFFSET_V
	$h.top_level = true
	$h.position.x = OFFSET_X
	$h.position.y = OFFSET_Y
	$h.position.z = OFFSET_Z
	interact_ray.position.x+=OFFSET_H
	$h/v/SpringArm3D.add_excluded_object(self) # removes collision with player
	$h/v/SpringArm3D.add_excluded_object($h/v/SpringArm3D)
	spring_arm_3d.spring_length = SPRING_ARM_LENGTH
	spring_arm_3d.margin = SPRING_ARM_MARGIN
	label_3d.text = str("Player: ") + player_data.player_name
	var ray_target_position = Vector3(0,0,(SPRING_ARM_LENGTH+INTERACT_RAY_LENGTH) * (-1))

	interact_ray.target_position = ray_target_position
	camera_3d.current = true
	#chat_ui.show()
	chat_ui.player_data = player_data

func _unhandled_input(_event):
	if not is_multiplayer_authority(): return

	if Input.is_action_just_pressed("action_interact"):
		interact()
		#print("cc2")
	if Input.is_action_just_pressed("action_throw"):
		spawn_item.rpc()
	if Input.is_action_just_pressed("menu_inventory"):
		print("menu press")
		set_mouse_captured()
	if Input.is_action_just_pressed("action_chat"):
		chat_ui.show()

	pass

func _input(event):
	if not is_multiplayer_authority(): return
	if event is InputEventMouseMotion and Input.mouse_mode == Input.MOUSE_MODE_CAPTURED:
		$h.rotate_y(deg_to_rad(-event.relative.x * h_sensitivity))
		$h/v.rotate_x(deg_to_rad(-event.relative.y * h_sensitivity))
		$h/v.rotation.x = clampf($h/v.rotation.x, deg_to_rad(cam_v_min), deg_to_rad(cam_v_max))

func _physics_process(delta):

	if not is_multiplayer_authority(): return
	# Add the gravity.
	if not is_on_floor():
		velocity.y -= gravity * delta

	# Handle jump.
	if Input.is_action_just_pressed("ui_accept") and is_on_floor():
		velocity.y = JUMP_VELOCITY

	# Get the input direction and handle the movement/deceleration.
	# As good practice, you should replace UI actions with custom gameplay actions.
	var input_dir = Input.get_vector("action_move_left", "action_move_right", "action_move_forward", "action_move_backward")
	var direction = (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()
	if direction:
		direction=direction.rotated(Vector3.UP,$h.rotation.y)
		#velocity.x = direction.x * SPEED
		#velocity.z = direction.z * SPEED
		velocity.x =  lerp(velocity.x,direction.x * SPEED, 0.1)
		velocity.z = lerp(velocity.z,direction.z * SPEED,0.1)
		mesh.rotation.y=lerp_angle(mesh.rotation.y,atan2(-velocity.x,-velocity.z),0.15)
	else:
		velocity.x = move_toward(velocity.x, 0, SPEED)
		velocity.z = move_toward(velocity.z, 0, SPEED)

	push_objects()
	check_ray_colliding_mouse()
	move_and_slide()
	camera_follow_player()

func camera_follow_player():
		var camera_ideal_position: Vector3 = self.global_position + Vector3(OFFSET_X,OFFSET_Y,OFFSET_Z)
		if self.global_position != $h.global_position - Vector3(OFFSET_X,OFFSET_Y,OFFSET_Z):
			$h.global_position = lerp($h.global_position,camera_ideal_position,0.25)


func push_objects():
	for i in get_slide_collision_count():
		var c = get_slide_collision(i)
		if c.get_collider() is RigidBody3D:
			var body = c.get_collider()
			var direction:Vector3 = body.position - global_position
			var dir_normal = direction.normalized()
			var imp:Vector3 = dir_normal * PUSH_FORCE
			body.apply_central_impulse(imp)



func check_ray_colliding_mouse():

	if interact_ray.is_colliding():
		if is_mouse_over:
			var collider_obj:Object = interact_ray.get_collider()
			#current_collider = collider_obj
			if current_collider != collider_obj:
				mouse_exited(current_collider)
				mouse_entered(collider_obj)
				current_collider = collider_obj
			else:
				# Do nothing
				pass
		else:
			if current_collider:
				mouse_exited(current_collider)
				current_collider = null
				var collider_obj:Object = interact_ray.get_collider()
				mouse_entered(collider_obj)
				current_collider = collider_obj
				is_mouse_over=true
			else:
				var collider_obj:Object = interact_ray.get_collider()
				mouse_entered(collider_obj)
				current_collider = collider_obj
				is_mouse_over=true
	else:
		if is_mouse_over:
			if current_collider:
				mouse_exited(current_collider)
			is_mouse_over=false

		pass

func mouse_entered(collider):
	if not collider == null:
		print("entered player mouse")
		collider.mouse_entered.emit()


	pass
func mouse_exited(collider):
	if not collider == null:
		print("exited player mouse")
		collider.mouse_exited.emit()
	pass
func set_mouse_captured():
		if is_mouse_captured:
			Input.mouse_mode = Input.MOUSE_MODE_VISIBLE
			label_3d_2.show()

		else:
			Input.mouse_mode = Input.MOUSE_MODE_CAPTURED
			label_3d_2.hide()
		is_mouse_captured = !is_mouse_captured

func interact():
	print("player_press")

	if interact_ray.is_colliding():
		var collider_obj = interact_ray.get_collider()
		print("collider class - ",collider_obj.name)

@rpc("any_peer","call_local")
func spawn_item():
	var basis_z = camera_3d.global_transform.basis.z
	var g_t = global_transform
	spawn_item_signal.emit(g_t, basis_z)
	pass

Sorry but too lazy to delete uneccessary things from script..

But pay attention to:

world.gd

extends Node3D
const PLAYER = preload("res://Assets/Player/player.tscn")
const BOX = preload("res://Assets/Items/box.tscn")
@onready var players: Node = $Players
const start_pos: Vector3 = Vector3(0,3,0)
@onready var items = $Items


func _ready() -> void:
	var index =0
	for i in GameManager.players:
		spawn_player(GameManager.players[i]) # <-----------------------------------

		index +=1
	#Input.mouse_mode = Input.MOUSE_MODE_CAPTURED
	pass # Replace with function body.


func spawn_player(player_data:PlayerData):
	var new_pos:Vector3


	var new_player = PLAYER.instantiate()
	new_player.name = str(player_data.id)
	new_player.player_data=player_data
	players.add_child(new_player)
	#new_player.spawn_item_signal.connect(spawn_item_world)
	new_player.spawn_item_signal.connect(spawn_item_world_spawner) # <----------------------------------

	var player_count = players.get_children().size()


	if player_count > 1:
		var last_player = players.get_children()[player_count-1]
		new_pos = last_player.position + Vector3(3,3,3)
		new_player.position = new_pos
	else:
		new_player.position = start_pos

func spawn_item_world_spawner(player_transform:Transform3D, basis_z:Vector3):

	var new_box = BOX.instantiate()
	new_box.position = player_transform.origin - (basis_z *  3)
	items.add_child(new_box)

	pass

And in player.gd

extends CharacterBody3D
class_name Player

var player_data:PlayerData
signal spawn_item_signal



func _unhandled_input(_event):
	if not is_multiplayer_authority(): return

	if Input.is_action_just_pressed("action_interact"):
		interact()
		#print("cc2")
	if Input.is_action_just_pressed("action_throw"):
		spawn_item.rpc() #<---------------------------------------------------------------
	if Input.is_action_just_pressed("menu_inventory"):
		print("menu press")
		set_mouse_captured()
	if Input.is_action_just_pressed("action_chat"):
		chat_ui.show()

	pass

@rpc("any_peer","call_local")
func spawn_item():
	var basis_z = camera_3d.global_transform.basis.z
	var g_t = global_transform
	spawn_item_signal.emit(g_t, basis_z)
	pass
