How to make a custom collider that will deform with a skeleton

JoeJoe Posts: 14Member

I would like to make a collision detector for a mesh I have imported from blender. The mesh is parented to a skeleton, which I use to deform the mesh. I would like to attach a collider to it in order to implement physics and have other objects bounce off of it. Instead of attaching a general shape collider like a cube or sphere to the mesh, I want it to be an accurate copy of the mesh itself. I've tried adding a Trimesh Static Body, which does make a collider the same shape as the mesh, however since it's static, it won't deform with a skeleton. Is there a way to generate a collider the same shape as a mesh that would deform with a skeleton and also stay with the mesh as it moves around? I've tried to do this using physical bones, which I think is how you're supposed to do it, but I couldn't get it to work (the mesh would just go through other objects).


Tags :

Best Answer

Answers

  • fire7sidefire7side Posts: 882Member
    Accepted Answer

    Not quite that, but you can make collider shapes to follow a bone with this plugin:
    https://github.com/christinoleo/FollowBone3D
    You could use it in combination with a deformable mesh parented to the skeleton like the example.

  • JoeJoe Posts: 14Member

    Thank you! Will look into this

  • JoeJoe Posts: 14Member
    edited August 2021

    How are you supposed to parent/implement this new node? My current structure is Spatial -> Spatial (armature) -> Skeleton -> Mesh. I'm not really sure where to add the collision shapes either

  • fire7sidefire7side Posts: 882Member

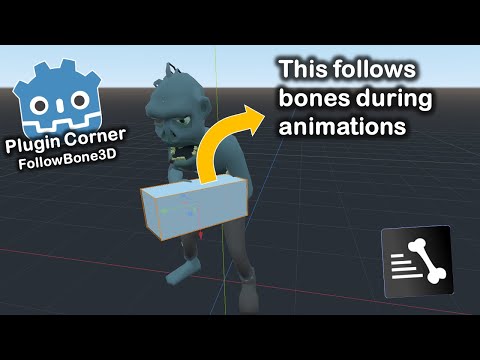

    This tutorial might help. I haven't used it yet.

  • JoeJoe Posts: 14Member
    edited August 2021

    I tried following the tutorial, but I get this error message: Cannot get path of node as it is not in a scene tree. The skeleton is grayed out in my scene tree but I don't know why. Maybe it's because I imported it from blender or didn't import it correctly?

  • JoeJoe Posts: 14Member

    Actually I just found a node called BoneAttachement which is basically the same thing as the plugin and I got it working.

  • JoeJoe Posts: 14Member
    edited August 2021

    I'm able to attach mesh instances to the skeleton bones, and that works fine, but when I try to attach an area node with a collision shape child it doesn't work. (the other object is a rigidbody with a collision shape attached to it) How would you set up a collision where the rigidbody would collide with the skeleton and be prevented from entering the collision shape?

  • fire7sidefire7side Posts: 882Member

    Hmm they must have added that bone attachment, that's probably why the plugin wasn't updated. That's good to know. What do you mean when you say you add a collision shape and it doesn't work. Does it give an error, or what?

  • JoeJoe Posts: 14Member

    Never mind, it was actually working how it was supposed to work. I thought that if I attached an area node with a collision shape to the skeleton, it would make rigid bodies bounce off it, but all that does is create an area that detects collisions and doesn't actually do anything. What I was trying to do is make it so that rigid bodies would not be able to enter the collision shape area on the skeleton. Is that possible? Maybe I could calculate the force of the rigid body and then when it touches the collision shape i would apply the opposite force? There's probably a better way but I can't find anything.

  • fire7sidefire7side Posts: 882Member

    Did you try adding a kinematic body? If that doesn't work, then yeah, you would have to apply an opposite force.

  • JoeJoe Posts: 14Member

    Thank you so much for all the help! The kinematic body worked perfectly

  • fire7sidefire7side Posts: 882Member

    Glad to hear it.
